$$6,975.10In stockNEW PRODUCTS \ INDUSTRIAL SEWING MACHINE \ Cylinder Needle FeedDurkopp
869-180020

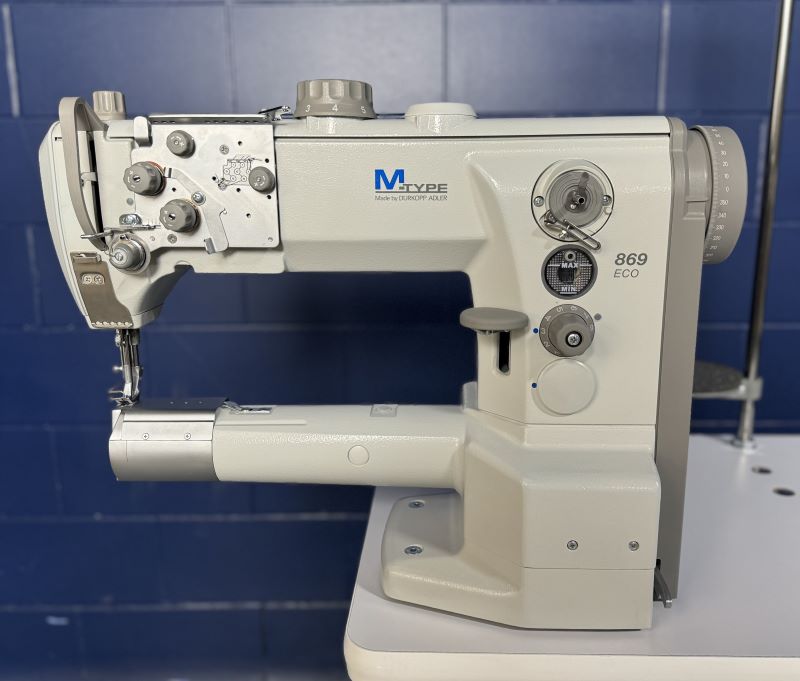

869-180020 M-TYPE 869 ECOWalking Foot Durkopp Adler
Durkopp Adler 869: Precision and Performance for the Most Demanding Applications The Durkopp Adler 869 is a state-of-the-art, free-arm sewing machine designed to deliver flawless seams with unparalleled consistency. Featuring the latest generation of technology, this model is equipped with a powerful direct-drive 'DA' motor, ...
DURKOPP ADLER869-180020 M-TYPE 869 ECO

DURKOPP ADLER

869-180020 M-TYPE 869 ECO

Walking Foot Durkopp Adler

$6,975.10

Item #: 869-180020

Shipping: Item will be shipped before or on 12/25/2024

Quantity:
Add to Cart
Add to Wishlist
  • Create a New List
Specifications
General
Brand
DURKOPP ADLER
Item #
869-180020
Description

Durkopp Adler 869: Precision and Performance for the Most Demanding Applications

The Durkopp Adler 869 is a state-of-the-art, free-arm sewing machine designed to deliver flawless seams with unparalleled consistency. Featuring the latest generation of technology, this model is equipped with a powerful direct-drive 'DA' motor, ensuring high and reliable performance in even the most demanding environments. The innovative triple feed system guarantees even, accurate stitching, even on challenging fabrics. Additionally, the machine comes with an automatic thread trimmer and an electropneumatic presser foot lift to enhance productivity and efficiency.

Key Features of the Dürkopp Adler 869:

  • Free Arm System: Enables easy sewing on complex, three-dimensional items such as bags, shoes, and leather goods, providing optimal maneuverability and precision.
  • Triple Feed System (Needle, Feed Dog, and Presser Foot): Delivers consistent, even stitching across various fabric types and thicknesses, effectively preventing fabric shifts.
  • Centralized Lubrication System: Reduces maintenance requirements while extending the machine's service life.

Technical Specifications:

  • Stitching Speed: Up to 3,200 stitches per minute.
  • Maximum Stitch Length: 9 mm.
  • Presser Foot Lift Height: Up to 20 mm.
  • Needle System: DPx17, available in various sizes to accommodate different materials.
  • Material Handling Capability: Optimized for heavy-duty applications, including multi-layer fabrics like leather, vinyl, coated textiles, and technical fabrics.
  • Large capacity Bobbin

The Dürkopp Adler 869 is a robust, high-performance machine designed to meet the rigorous demands of modern industrial sewing, offering precision, efficiency, and long-term reliability.

Durkopp Adler 869 Features:

  • Ideal for medium-weight materials, perfect for sewing three-dimensional or tubular items such as shoes, leather goods, luggage, textiles, and more.
  • Handles heavier materials and threads up to size 207 with ease, ensuring versatility for a wide range of projects.
  • Easily bind material edges with low tension by deactivating the bottom feed stroke in just a few simple steps.
  • Equipped with a 13" slim arm for better access to hard-to-reach seam areas.
  • Excellent ability to climb over thick spots and cross seams without shortening stitches or damaging material.
  • Adjustable lubrication system with precise hook lubrication for smooth operation.
  • Large bobbin capacity for longer sewing cycles and a safety clutch to prevent hook damage.

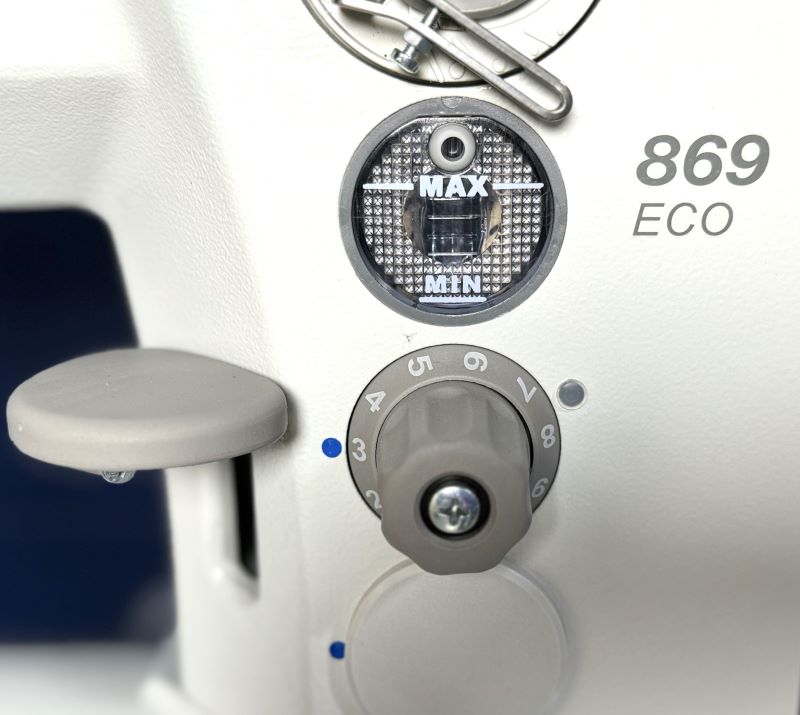

  • Servo motor (ISM 750 Watts horsepower, 110V motor) with a precise numbered dial for easy, accurate speed adjustments.
  • Comes with a full-year limited warranty for peace of mind.

This machine arrives fully assembled and ready to use

Included with your purchase:

  • Machine Head Mounted on Table Ready to use
  • Space Saver Special Table & Stand
  • ISM 750W / 110 Servo
  • Original Manual & Accessories

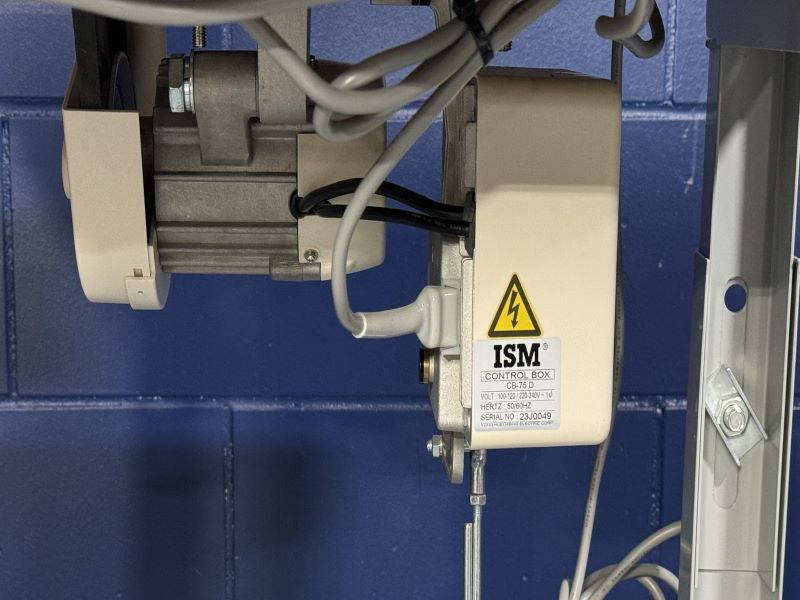

The Sewing Head is Powered By ISM Servo Motor 750W 110V

  • Maximum Speed Adjustment
  • Motor Rotation Direction Control
  • Soft Start Feature
  • Acceleration Ramp
  • Deceleration Ramp
  • Max Speed 3500 rpm
  • Easy upgrade from clutch motor
  • High efficiency performance
  • User-friendly operation
  • Compact size and lightweight design
  • High/low voltage isolation for enhanced safety
  • Dual digital displays for flexible function control





  • 869 ECO high functionality and flexibility at an attractive price
  • Slim machine arm diameter of only 78 mm facilitates the handling of difficultly accessible seam areas
  • Single needle machines with adjustable bottom feed (with stroke for topstitching operations, without stroke for binding operations)
  • Quick change to binding applications

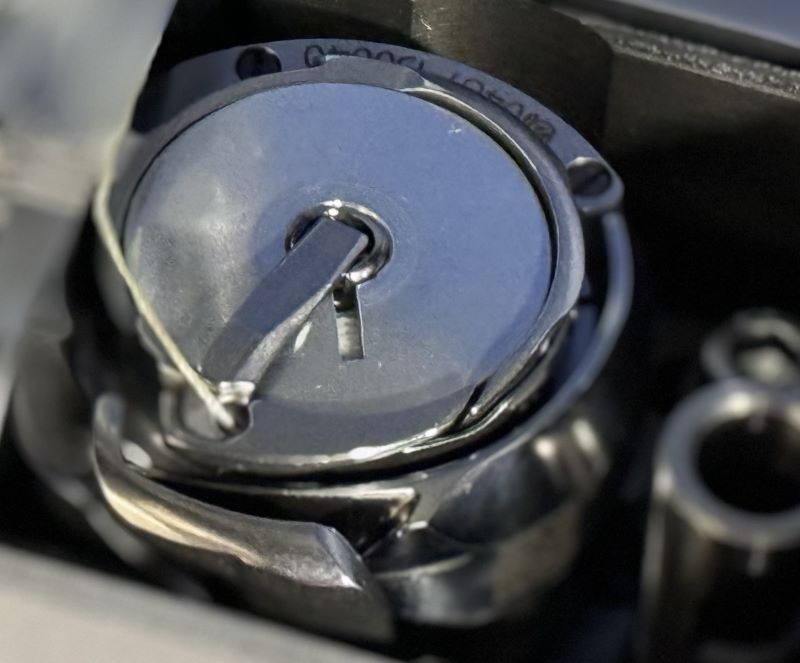

  • Vertical hook with large bobbin capacity for longer sewing cycles and a wider sewing thread spectrum
  • High productivity due to increased speed up to 2,800 stitches/min.
  • Excellent climbing properties avoid shortened stitches and material damage at thick spots or cross seams
  • Safety clutch protects against hook damage
  • New lubricating system with adjustable hook lubrication
  • Sewing drive fastened at the machine head
Attachments
DA_869-M_deen_12-2020 (1)DA_869-M_deen_12-2020 (1)Durkopp Adler 869 Cylinder Walking Foot
